Check Valve
 Hits: 189
FONTAL KURODA MALAYSIA
3 days after payment
2019-05-07 23:53

Details

  • Check Valve
    Additional Equipment — Check Valve Features:
    Connect cylinder and valve to stop cylinder halfway, preventing adverse effect by leak in valve

    Check Valve

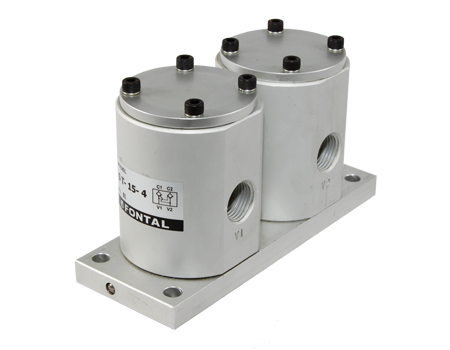

    Double Pilot Check Valve ST Series
    .
    Model No Port size Effective area
    (mm2)
    Pressure range
    MPa(kgf/cm²)
    ST-10 Rc1/4,3/8 45 0.15~1
    (1.5~10)
    ST-15 Rc1/2 70
    ST-25 Rc3/4,1 190

    Check Valve S Series
    .

    Model No Port size Effective area
    (mm2)
    Pressure range
    MPa(kgf/cm²)
    S/520 G1/8 14 0.03~1
    (0.3~10)
    S/521 G1/4 18
    S/522 G1/2 90
    S/523 G3/4 195
    S/524 G1 317
